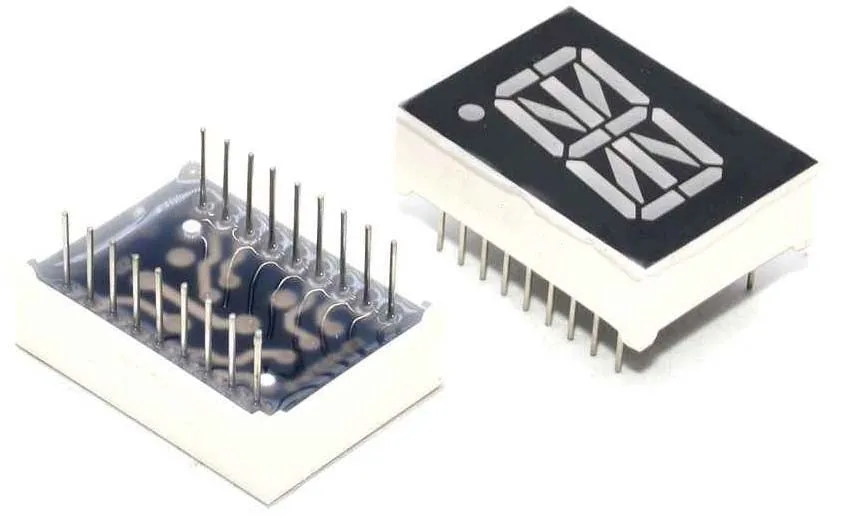

• 16 Segment Single Digit Alphanumeric Display, Red
• 0.8 inch character height
• Pin Configuration: Common Cathode
• 18 Pins with 0.1" spacing for easy mounting on breadboards or in sockets

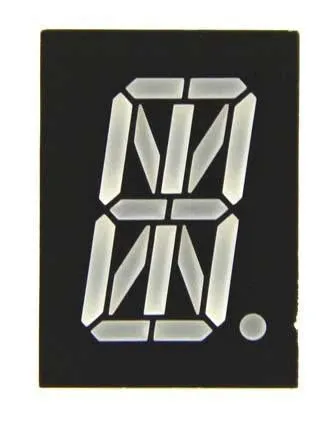

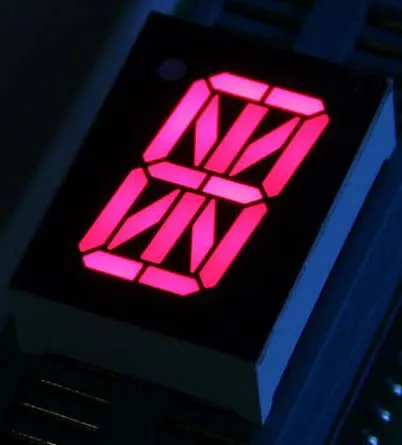

• Color: black background with white segment that illuminates bright red

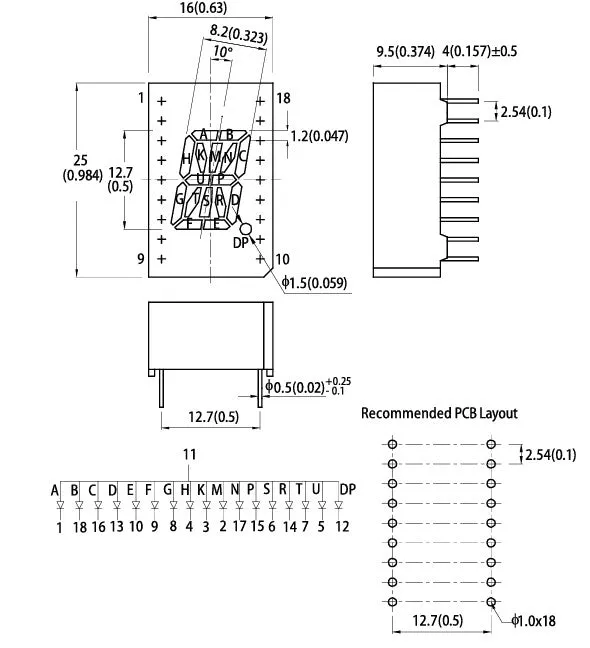

• NOTE: Please see the product images for pinout diagram

General Specifications:

• Character height: 0.8 inch (20mm)

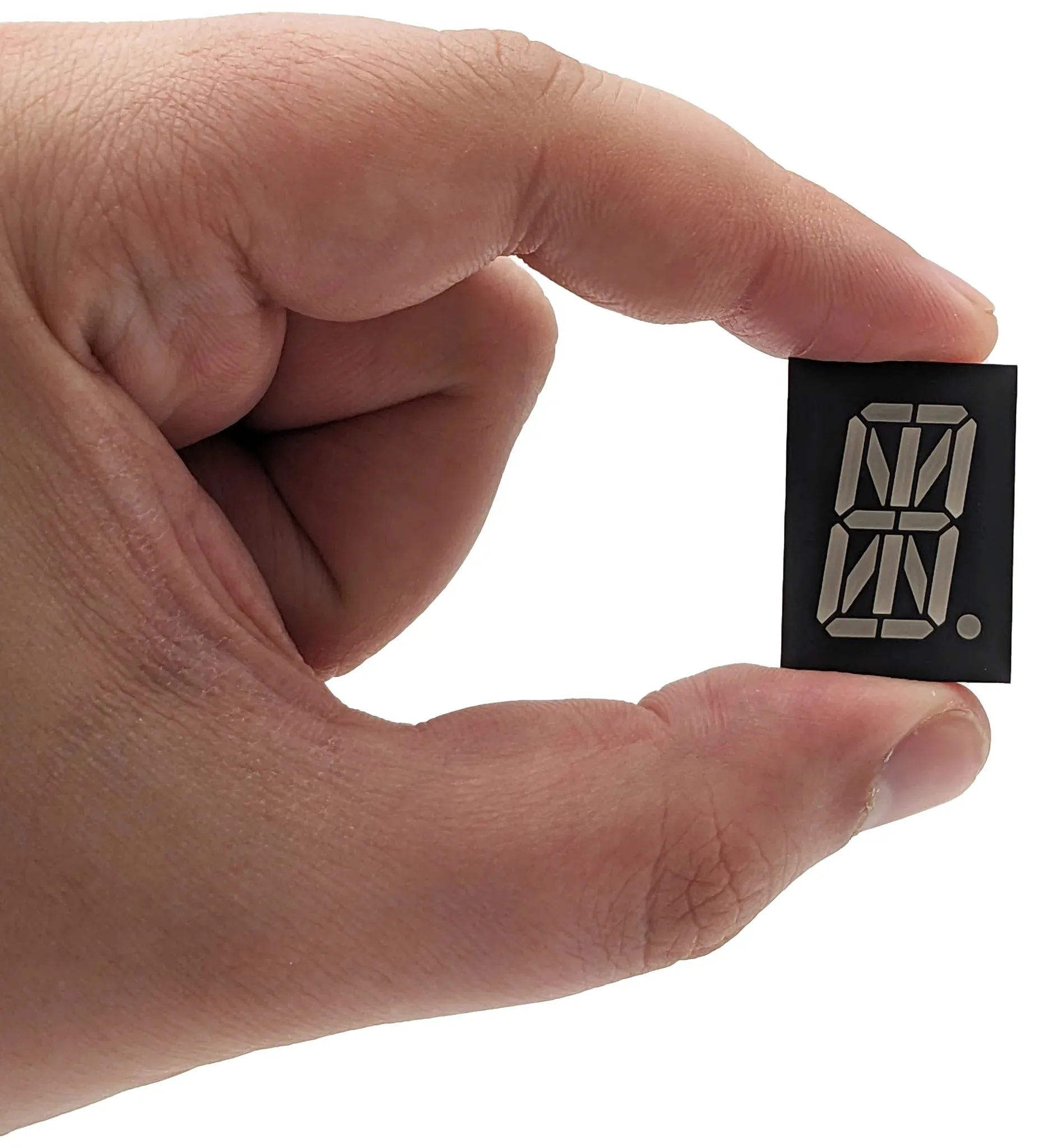

• Size: 0.79" x 0.33" x 1.09" overall
• Color: black background with white segment that illuminates bright red

Technical Specifications:

• Forward Voltage, Per Segment: 1.9V min, 2V typ, 2.5V max
• Reverse Current, Per Segment: 50μA
• Peak Emission Wavelength: 630nm min, 633nm typ, 637nm max
• Luminous Intensity, Per Segment: 23mcd min, 25mcd typ, 28mcd max

Applications:

• Home and Smart appliances
• Displaying time and digital combination
• Industrial and instrumental applications such as voltmeters and ammeters, etc.
